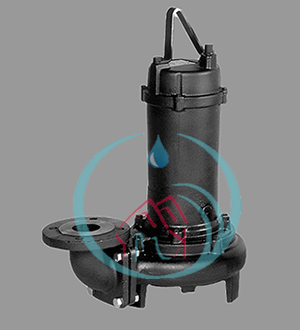

Ebara 65DF51.5 Submersible Pump with non-clog semi open impeller, with “cutting effect”, to prevent clogging by fibrous matter. Ebara 65DF51.5 Submersible Pump suitable for sewage, waste water, storm water drainage, etc.
Specifications of submersible sewage pump Ebara :
- Submersible pump with non-clog semi open impeller
- Maximum solids handling: refer to table
- Maximum liquid temperature : 40 deg. C
- Maximum submergence : 8 m
Materials :
- Pump casing : cast iron
- Impeller : Cast iron
- Suction cover : cast iron
- Shaft : 403 stainless steel
- Motor frame : cast iron
- Fasteners : 304 stainless steel
- Mechanical seal :
Double mechanical seal in oil chamber,
Silicon carbide lower faces
Carbon/ ceramic upper faces
Motor Data :
- Air filled, dry submersible, 4 pole, 50 Hz
- Insulation class F
- IP68 protection
- 3 phase – 400 volt
- In built overload protection
Range :
- Discharge 60 to 80 mm
- 1.5 to 3.7 kW – 3 phase (Manual only)
Supply :
- Cable : 10 m
- Discharge elbow with screwed companion flange
Accessories : Quick discharge connectors (QDC) available
Performance Table :
- Model Pump : 65 DF 51.5
- Motor Output : 1.5 kW
- Discharge : 65 mm
- Full load Current 3 ph, 400 V : 3.9 A
- Capacity :
– 200 lpm, Head : 12.6 m
– 300 lpm, Head : 11.4 m
– 400 lpm, Head : 10.0 m
– 500 lpm, Head : 8.5 m - Synchronous speed : 1500 rpm
