Centrifugal Pump CNP JET45

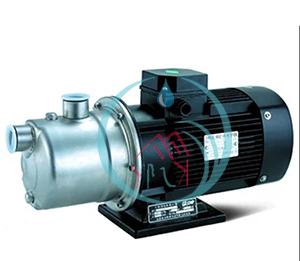

Centrifugal Pump CNP JET45 Stainless Steel Self Priming Centrifugal Pump.

Features

  • Self-priming jet assisted centrifugal pump provides higher pressure and good suction ability
  • Pump body and impeller and so on made of stainless steel, ejector made of plastics with high intensity and abrasion proof.
  • TEFC motor corrosion resistant and excludes dust and dirt. Protected against both high operating temperature and high current by a built-in automatically resetting thermal overload.
  • Used screwed suction and discharge, quick and easy installation.
  • Low maintenance, easy to service if required.
Centrifugal Pump CNP JET45

Application

Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous, noncorrosive, non-crystallizable, chemically neutral and close to water. Such as:

Technical Data Centrifugal Pump CNP JET45:

  • Max. suction head : 7 m
  • Max. liquid temperature : +45 deg. C
  • Max. ambient temperature : +40 deg. C
  • Max. pump casing pressure : 0.6 MPa
  • Inlet size : G1
  • Outlet size : G1
  • Power : 0.55 kW
  • Voltage : Single phase 220 V, Three phase 380V
  • Speed : 2900 r/min
  • Protection class : IP55
  • Capacity :
    0 m3/h ; Head : 43 m
    0.6 m3/h ; Head : 34 m
    1.2 m3/h ; Head : 27 m
    1.5 m3/h ; Head 24 m
    1.8 m3/h ; Head : 22 m
    2.4 m3/h ; Head : 18 m
    3.0 m3/h ; Head : 15 m

Material :

  • Casing : 304 SS
  • Impeller : 304 SS
  • Shaft : 304 SS
  • Rotating : Ceramic
  • Stationary : Carbon
  • Oring : NBR
  • Motor house : Aluminum alloy
