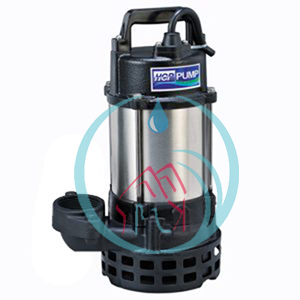

Submersible Pump HCP F31U


Submersible Pump HCP F31U sewage and effluent submersible pump for drainage of sewage, efficient for industrial needs.

FEATURE :

  • A precision manufactured motor is achieved by utilizing the highest standard of quality control. All rotors adopt heat treatment methods for drive shaft assembling, and stator winding impregnated with varnish that is heat dried in an industrial oven. The water resistance for pump can reach IP68 Grade.
  • HCP’s professional assembly line, complimented with a synthesized production test, ensures the highest level of final pump quality.
  • Standard accessories include : cable with an epoxy resin sealed water-resistant cable base, AC thermal motor protector, dual mechanical seals and lip seal design.
  • The F-05A is an extremely practical pump, with an oil filled motor and single seal design (CA/CE)
Submersible Pump HCP F31U

APPLICATIONS :

  • Drainage of sewage from the building basements, hotel industry, and waste water from factories
  • Emptying of septic tanks, cesspits and sewage pump stations
  • Pumping surface and drainage water from garages and sprinkler systems.

SPECIFICATIONS PRODUCT :

  • Limit Of Use
    Liquid Temp : 0~40°C (32~104°F)
    Applications : General wastewater and sewage water and industrial waster
    Submersion Depth : 30 m (100 feet)
  • Type
    Frequency : 50Hz
    Motor : 2P (3000 RPM) and Dry motor (F-05A : Oil Motor)
    Insulation : Class B
    Protection : IP68
    Protector : Auto-Cut (F-05A 3ø : none, F-05A/U 1ø : Overheat)
    Bearing : Ball Type
    M.Seal : Double M.seal (F-05A: Single M.seal)
    Impeller : Semi-Open

PERFORMANCE SPECIFICATION 50Hz Submersible Pump HCP F31U

Model : F-31U

Power : 1 HP (0.75 kW)

Discharge : 3 Inch (80 mm)

Motor : 1 pahsed and 3 Phase

Start Method : Capacitor and direct

Head : 6.5 m

Capacity : 0.3 m³/min

Capacity : 18 m³/h

Solid Passage : 30 m

Weight 1 ø : 18 kg

Weight 3 ø : 171 kg
