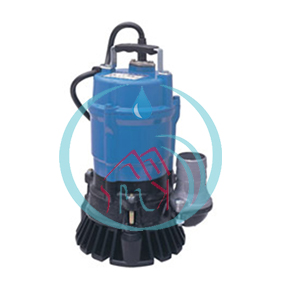

Tsurumi Pump HS3.75S


Tsurumi Pump HS3.75S Submersible Pump Tsurumi HS3.75S submersible single phase portable drainage pumps that come with high volume drainage capability. These pumps are low head, high volume drainage type. With high volume drainage performance, they are suited to specifically meet the needs of the rental market, as well as the civil engineering and the construction market.

Tsurumi Pump HS3.75S

Features :

  • Anti-wicking cable entry
    Prevents water incursion due to capillary action should the cable sheath be damager or the end of cable submerged. Also prevents moist air from infiltrating the motor housing and condensation from forming inside the housing due to temperature differences between the housing and outside air.
  • Dual inside mechanical seals with silicon carbide face
    Eliminates problems like spring failure and ensure a long service life. Isolated in the oil chamber where a clean, non-corrosive and abrasion-free lubricating environments is maintained. The silicon carbide provide 5 times higher corrosion, wear and heat resistance than tungsten carbide
  • Oil lifter
    Provides lubrication and cooling of the seal faces down to 1/3 of normal oil level, thus maintaining a stable shaft sealing effect and prolonging seal life longer. The oil lifter is Tsurumi original design.
  • V-ring (0.75 kW only)
    Used as a “Dust Seal” they protect the mechanical seal from abrasive particles
  • Agitator
    Prevents the air lock that tends to take place on vortex or semi-vortex pumps

Specification Submersible Tsurumi Pump HS3.75S :

ModelHS3.75S (Standard)
HSZ3.75S (Automatic)
Discharge Bore80 mm
Motor Output0.75 kW
PhaseSingle
Starting MethodCapacitor Run
Solids passage7 mm
Dimensions285 mm x 184 mm x 394 mm
Dry weight16.8 kg (standard)
16.8 kg (Automatic)
Cable length5 m
