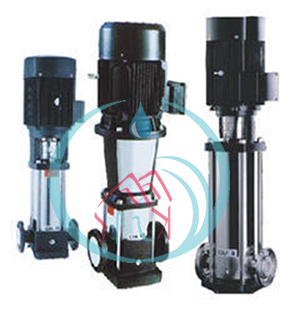

Centrifugal Pump CNP CDL1

Centrifugal Pump CNP CDL1 is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor. The motor output shaft directly connects with the pump shaft through a coupling. The pressure resistant cylinder and flow passage components are field between pump head and inlet and outlet section with stay bolts. The inlet and outlet are located at the pump bottom at the same plane.

Centrifugal Pump CNP CDL1


CDL Series is a kind of multifunctional products. Can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid

  • Water supply : Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.
  • Industrial boosting : Process flow water system, cleaning system, high-pressure washing system, fire fighting system
  • Industrial liquid conveying : Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali
  • Water treatment : Ultrafiltration system, reverse osmosis system, distillation system, swimming pool, separator
  • Irrigation: Farm land irrigation, spray irrigation, dripping irrigation


  • Model : CDL1
  • Rate flow : 1 m3/h
  • Rate flow : 0.28 l/s
  • Flow range : 0.4-2 m3/h
  • Flow range : 0.11 – 0.56 l/s
  • Max. pressure : 21 bar
  • Motor power : 0.37 kw – 2.2 kW
  • Temp. : -15 ~ +120
  • Max. efficiency : 44%
  • DIN Flange : DN 25
  • Oval Flange : G1
