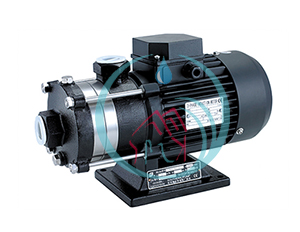

Centrifugal Pump CNP CHLF2-20 Light Horizontal Multistage Pump 50 Hz.
APPLICATION
Centrifugal Pump CNP CHLF2-20 mainly used in industrial field :
- Air-conditioning system
- Industrial system
- Industrial cleaning
- Water treatment (Water purification)
- Aquiculture
- Fertilizing/metering system
- Environmental application
- Other special applications
Applicable Medium
- Thin and clean non-flammable and non-explosive liquid without solid granules and fibers
- Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums
- When the density of viscosity of to-be-conveye liquid is larger than that of water, it is necessary to select a driving motor of high-power.
- Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content
Pump :
- Horizontal multistage non-self priming centrifugal pump, attached with long shaft electric motor
- Compact structure renders small size of pump; axial inlet and radial outlet
Motor
- TEFC motor 2-pole
- Protection class : IP 55
- Insulation class : F
- Standard Voltage, 50 Hz : 1 x 220-240V ; 3 x 220-240V/ 380-415V
- Standard voltage, 60Hz : 1 x 220-240V ; 3 x 220-240V/ 380-415V
- Single phase motor (max) : 2.4 kW
Performance Table Centrifugal Pump CNP CHLF2-20:
- Model : CHLF 2-20
- Driving motor : 0.37 kW 0.5 Hp
- Capacity :
0.5 m3/h 19 m
1.0 m3/h 18 m
1.5 m3/h 16 m
2.0 m3/h 14 m
2.5 m3/h 13 m
3.0 m3/h 11 m
3.5 m3/h 9 m - Three phase / single phase
- Weight : 15 kg
