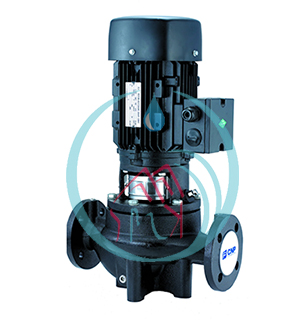

Centrifugal Pump CNP TD50


Centrifugal Pump CNP TD50 single stage in line circulation pumps, equipped with standard motor and mechanical seal. Comparing with other pumps in similar structure, these pumps are less accessible to the impurity in the liquid.

This pump designed to be pulled out from the top when disassemble. It can be repaired without affecting the pipeline.

The mechanical seal for TD 200 and above is cartridge mechanical seal. Motor needn’t to be disassembled when replace mechanical seal.

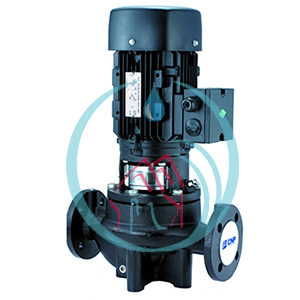

Centrifugal Pump CNP TD50

APPLICATION :

Centrifugal Pump CNP TD50 is a versatile product that can transport various media from tap water to industrial liquids, mainly used for liquid conveying, pressurizing and circulating equipment. For example :

  • District heating system (the water quality in the heating system should meet the recognized water quality standards of that kind of system)
  • HVAC system
  • Cooling system
  • Domestic hot water system
  • Industrial liquid transportation
  • Water supply system

Performance Table Centrifugal Pump CNP TD50 :

ModelMotorCapacity
TD50-32G/23 kw2.5 m3/h Head 35 m
5 m3/h Head 34.6 m
7.5 m3/h Head 34 m
10 m3/h Head 33.2 m
12.5 m3/h Head 32 m
15 m3/h Head 30.5 m
17.5 m3/h Head 27.9 m
20 m3/h Head 23.3 m
TD50-39G/24 kw2.5 m3/h Head 41.9 m
5 m3/h Head 41.7 m
7.5 m3/h Head 41.3 m
10 m3/h Head 40.2 m
12.5 m3/h Head 39 m
15 m3/h Head 37.2 m
17.5 m3/h Head 34.8 m
20 m3/h Head 31.2 m
