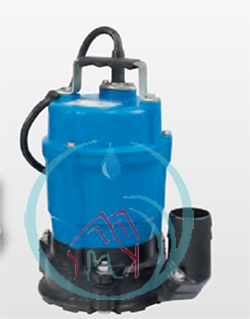

Submersible Pump Tsurumi HSR2.4S Semi Vortex Waste Water Pump single-phase portable pumps. Though it is a single-phase unit, the pump has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The side discharge, spiral design allows smoother passage of the sucked solid matters.
Description :
The shaft-mounted agitator prevents the air lock that tends to take place on vortex or semi-vortex pumps. The rubber/resin-made stand protects the floor surface from scratching. The HSR pump can start operating at as low as 5mm of water level and can continue pumping up to 1mm. Additionally, the discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.
Tsurumi single-phase portable dewatering pumps are compact and lightweight, so they are very
easy handle and carry. Available in an extensive lineup of motor outputs ranging from 0.1 to
2.2kW, these pumps are suited for a wide range of applications besides general pumping and
drainage, including slurries, residues and household uses
Features :
- Sprial design
- Anti-wicking Cable Entry
- Motor Protector
- Dual inside mechanical seal
- Oil lifter
- V-ring (0.55 kW and above)
- Cable Clip
- Rubber/resin-made stand
- Multi-directional hose coupling (HSR)
Specification of Submersible Pump Tsurumi HSR2.4S:
Model : HSR2.4S
Discharge Bore : 50 mm
Motor Output : 0.4 kW
Phase : Single
Stating Method : Capacitor Run
Solid Passage : 3 mm
Dry Weight : 10.8 kg
Cable Length : 5 m
