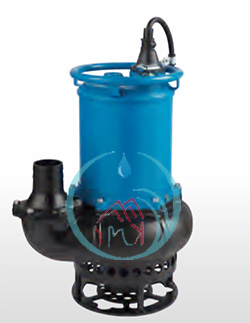

Submersible Pump Tsurumi GPN411 is a submersible high power, heavy-duty slurry pump incorporating an agitator to suspend solids enabling the pump to handle high concentration slurries. Being equipped with high-chromium cast iron wear parts, the pump delivers outstanding durability. The suction plate is adjustable enabling the pump to maintain the original performance. The GPN utilizes a cooling water jacket to allow the pump to operate at low water levels for extended period of time without the fear of overheating.
Description :
The GPN-series is a submersible three-phase high power and extra heavy-duty slurry pump driven by a 4-pole or 6-pole motor. It is equipped with a high-chromium cast iron agitator that assists smooth suction of the settled matters.
Application :
- Transferring and draining bentonite slurry in pilling works
- Draining ement slurry or sang-carrying water in foundation works
- Draining aggregate and ore wash water in mines and quarries
- Collecting sediments in grit chambers at wastewater treatment plants
- Pumping scale at steel mills
High powered slurry pumps that deliver powerful agitation for discharging slurries laden with silt, earth, sand or other particulate.
Specification of Submersible Pump Tsurumi GPN411:
Discharge Bore : 100 mm
Model : GPN411
Motor Output : 11 kW
Phase : Three
Starting Method : D.O.L
Solid Passage : 30 mm
Dimension (L x H) : 617 x 879
Dry Weight : 217 kg
Cable Length : 8 m
