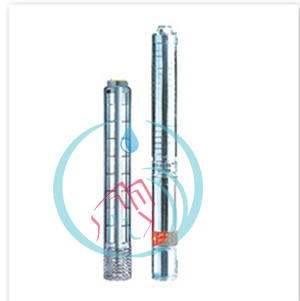

Deep Well Pump CNP SJ1-6 Stainless Steel Multistage Deep Well Submersible Pump.
TYPICAL APPLICATION :
- Circulation or boosting for clean water, demineralized water
- Water supply, irrigating system
- Lowering ground water level
- Boosting
- Other industrial applications
OPERATIONAL CONDITIONS
- Solid grain – or fiber free dilute clean non corrosive liquids
- Maximum liquid temperature : 25 deg. C
- Maximum working pressure : 38 bar
- pH : 6,5 ~ 8.5
- Maximum diving depth : ≤70m
- For the sake of pump sunning safely and reliably user shall install the correct motor protector
CURVE CONDITIONS :
- The curve tolerance complies with ISO9906 Annex A
- All curves are based on the measured values of 50 Hz;
Constant motor speed 2850 r/min or 2900 r/min, 60 Hz
Constant motor speed 3440 r/min or 3500 r/min - All measurement are carried out with gas free water of temperature 20 deg. C. The curve is applicable to kinematical viscosity 1 mm²/s. In case density of the liquid conveyed by the pump is higher than that of water, it is necessary to use corresponding motor of higher output power
- The coarse part of the curve means the recommended performance scope
- The performance curve includes loss caused by check valve etc
PRODUCT RANGE DEEP WELL PUMP CNP SJ1 :
- Rated flow : 1 m3/h
- Rated flow : 0.28 l/s
- Flow range : 0.2 – 2 m3/h
- Flow range : 0.06 – 0.56 l/s
- Max. pressure : 28 bar
- Motor power : 0.37 – 2.2 kW
- Max. efficiency : 45%
